GENERAL DETAILS

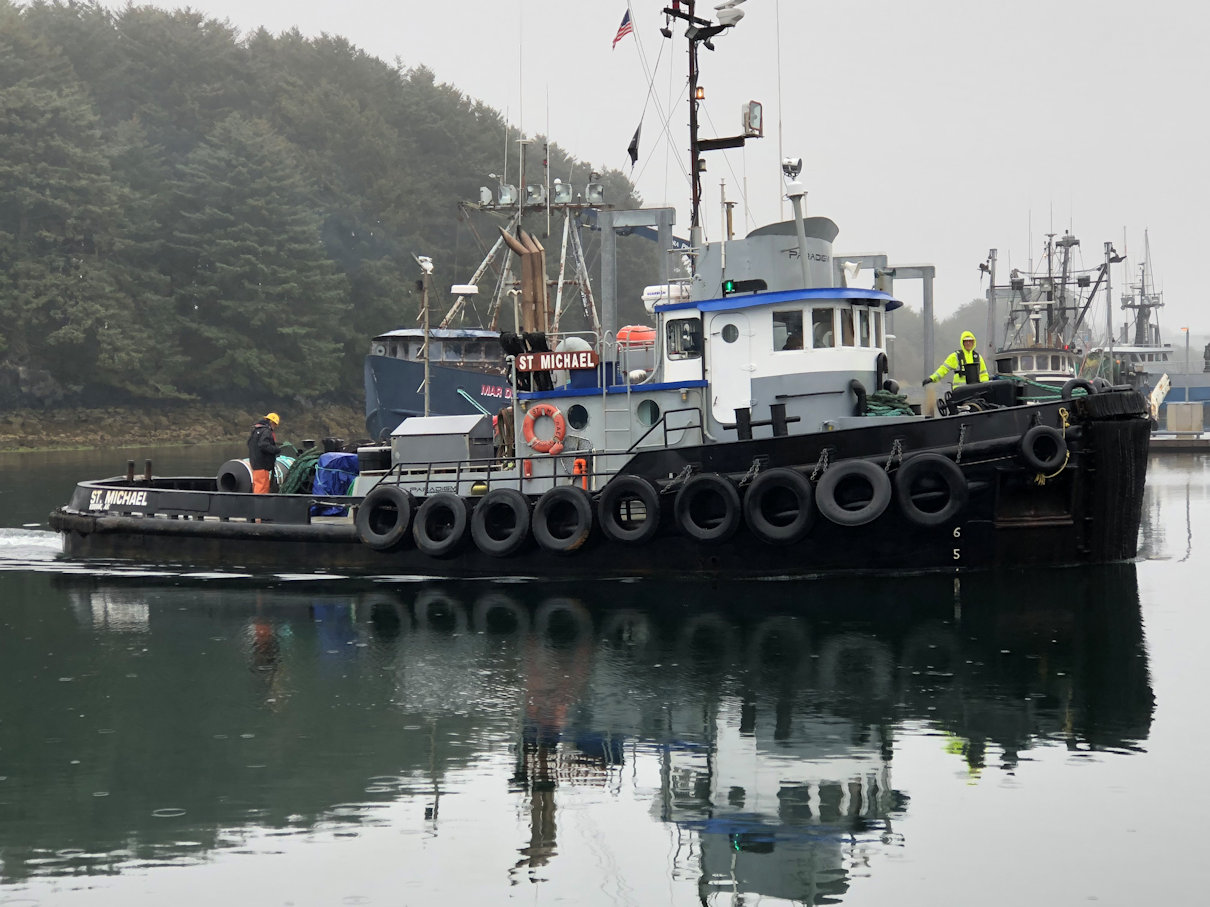

Vessel Type: Twin Screw Tug
Port Of Registry: Kodiak, AK
Flag: USA
Official #: 298317
Call Sign: WDJ6378
Builder: Martinolich Shipbuilding Corp.
Class: Uninspected Commercial Tug
VESSEL PARTICULARS
LOA: 65’/44.5M
Beam: 21.5’/10.4M
Depth: 7.3’/3.5M
Draft: 6’/1.8M
Tonnage: GRT 73/Net 46
CAPACITIES
Fuel Oil: 8,000 G / 30.4 M.T.
Potable Water: 2,000 G / 7.6 M.T.
Lube Oil: 200 G / .76 M.T.
PERFORMANCE
Speed: Maximum 11 Knots/Cruising 8 Knots
Fuel Consumption/Range: 1200 G/Day
MACHINERY
Main Engines: Twin Lugger SA6D140-1 (6140) 6 Cylinder Diesel, 1200 HP
Propellers: (5) Blade SS 52” x 51” RH/LH
Generators: (1) Northern Lights 40 kW S3 Phase AC Gen., (1) Northern Lights 5.5 kW Single Phase AC Gen.
Steering: (1) Wagner Hydraulic helm station
Winches: Anchor Foss windlass/make-up hydraulic winch
Tow Winch: Foss Single Drum Tow Winch with 1-1/8” x 1500’ Wire, (2) stern tow guide pins
Anchors/Chain: Navy 1,000 lb stockless, 540’ 3/4” stud-link Chain
ACCOMMODATIONS
Staterooms/Berths: 3/5
Galley: (1) All Electric
Heads/Showers: 1/1
AC/Heat: Addison furnace, York/Johnson AC, ARI A/C, Luvata air handler
Refrigerator/Freezer: SS Fridge/Freezer and 16 cu. ft. Freezer
Marine Sanitation: MSD
SPECIAL EQUIPMENT
Firefighting:3” Hydraulic driven Fire Pump
Air Compressors: Reciprocating Air Compressor
Pumps: Twin Disc Hydraulic system for deck hydraulics
Boats: 6 Person Guardian Life Raft
Welding: Miller Thunderbolt XL AC/DC Welder
Tools: Fully stocked tool room, assorted fittings, hardware
ELECTRONICS
VHF: (1) ICOM 0115964, (1) Standard Horizon Eclipse VHF
Single Side Band: (1) Stephens Sea222 SSB
Radars: (1) Furuno FR1351
Sounder: Furuno LS-6100 Color Video Sounder
GPS/Plotter: (1) Garmin 2010 GPS Map CVP, (1) Garmin GPS Map 4208 CVP, (1) HP PC with Navnet
AIS: Furuno Universal FA-150 AIS w/12” ViewSonic Screen
SAT Phone: (1) A Beam Post Dock Sat Phone
Loud Hailer: (1) Standard Horizon M85100012 Loud Hailer
Barometer: Weems & Plath Barometer
Autopilot: Robinson Auto Pilot
Compass: (1) Furuno Satellite Compass
